HYDRAULIC FLANGES

"SAE” flanges are manufacturer in accordance with the mounting dimensions and O-Rings of SAE J518 specifications, either Code 61 or Code 62, and ISO 6162. Stock flanges include socket weld, butt weld, and NPTF and SAE straight thread connections and are available as reducers, in-line & elbows.

Hose assembly removal is facilitated by the rounded end design of the clamps halves. Loosening of the four bolts and removal of one bolt permits the end of one clamps half to be pivoted to the side about the other bolt. This opens the clamps fully and allows the flanged head assembly to be removed. It also allows the easy assembly of the hoses in close quarters.
Use of the highly efficient and widely used static O-Ring seal eliminates the use of gaskets, tapered threads and sealing compounds. There are no spiral leakage paths. The connector may be assembled with small automotive wrenches in tight quarters with low torque requirements. Large wrenches and high assembly forces are not required.

Types of Hydraulic Flanges

1) SAE Split Flanges
2) SAE Mono or Captive Flanges
3) SAE Threaded Male/Female Flanges
4) SAE Socket Weld Flanges
5) SAE Butt Weld Flanges
6) SAE Blind Flanges
7) SAE Orifice Flanges
8) SAE Weld Nozzle /Swievel Flanges
9) SAE CETOP Flanges
10) SAE Square Flanges

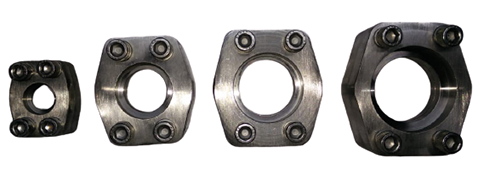

1) SAE Split Flanges

SAE Split flanges are designed as per ISO 6162-3000PSI & 6000PSI series only. Split-Flange Clamps design gives you tilt proof clamps. By locating the plane of the Split-Flanges Clamps half bolt centerlines so that it passes through the centre of force of the flanged head on the Split-Flange Clamps half, unbalanced moments are eliminated. This design principle prevents tilting of the clamps half and extrusion of the O-Ring. It conforms to SAE Standard J518.

  • Size: -1/2” NB to 5”NB
  • Pressure: - 3000PSI, 6000PSI.
  • Moc: CS (St.37.4), SS 304L, SS 316L.

2) SAE Mono or Captive Flanges

SAE Mono or Captive flanges are designed as per ISO 6162-3000PSI & 6000PSI series only. Hose assembly where easy removal piping can be possible with in close area Mono Flanges are in 2 halves attached with Weld nozzle with Allen bolts, Nuts & O ring Seal.

  • Size: - 1/2” NB to 5”NB
  • Pressure: - 3000PSI, 6000PSI.
  • Moc: CS, SS 304L, SS 316L

3) SAE Threaded Male/Female Flanges

SAE Threaded flange offer by us are used for extraordinary circumstance and can be placed without welding. Threaded flange are assemble with split flange or mono flanges with tube to weld on both side with Allen bolt & nuts.

  • Size: - 1/2” NB to 5”NB
  • Pressure: - 3000PSI, 6000PSI
  • Moc: CS, SS 304L, SS 316L

4) SAE Socket Weld Flanges

SAE Socket flanges are designed as per SAE J61 (3000PSI) & SAE J62 (6000PSI). Socket weld is similar to slip on flanges hence socket welds have an internal threaded on inside diameter to allow for a smoother flow of the process fluid..

  • Size: - ¼” to 1” (Full & Reduced Bore)
  • Pressure: - 250 BAR, 500 BAR
  • Thread: - BSP, NPT, SAE J1926-1
  • Moc: CS, SS 304L, SS 316L

5) SAE Butt Weld Flanges

SAE butt Weld flanges are designed as per ISO 6162-3000PSI & 6000PSI series only. Hose assembly where easy removal piping can be possible with in close area Mono Flanges are in 2 halves attached with Weld nozzle with Allen bolts, Nuts & O ring Seal.

  • Size: - 1/2” NB to 5”NB
  • Pressure: - 3000PSI, 6000PSI
  • Moc: CS, SS 304L, SS 316L

6) SAE Blind Flanges

SAE blind flanges are designed as per SAE J61 (3000PSI) & SAE J62 (6000PSI).Flanges are available in sizes up to 5" NB to weld pipe.

  • Size: - 1/2” NB to 5”NB
  • Pressure: - 3000PSI, 6000PSI.
  • Moc: CS(St.37.4), SS 304L, SS 316L

7) SAE Orifice Flanges

We are manufacture of compactly constructed manifold block mounted high pressure ball valve. (3 Way line).

  • Size: - DIN 6 to DIN 50 (Full Bore)
  • Pressure: - 500 BAR
  • Moc: CS, SS 304L, SS 316L

8) Shut off Valve- Sub-Plate Mounting- MSSL

SAE Orifice flanges are designed as per SAE J61 (3000PSI) & SAE J62 (6000PSI).Orifice flanges are weld with tube & assembled with Allen bolts & nut. Flanges are available in sizes up to 5" NB to weld pipe.

  • Size: - 1/2” NB to 5”NB
  • Pressure: - 3000PSI, 6000PSI
  • Moc: CS, SS 304L, SS 316L

9) SAE Butt Weld Flanges

SAE butt Weld flanges are designed as per ISO 6162-3000PSI & 6000PSI series only. Hose assembly where easy removal piping can be possible with in close area Mono Flanges are in 2 halves attached with Weld nozzle with Allen bolts, Nuts & O ring Seal.

  • Size: - 1/2” NB to 5”NB
  • Pressure: - 3000PSI, 6000PSI.
  • Moc: CS, SS 304L, SS 316L

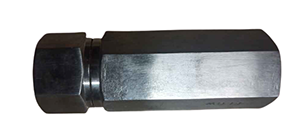

10) Check Valves (NRV)

Check valves are self-activating safety valves that permit gases and liquids to flow in one direction only. These valves are widely acclaimed owing to their durability, flexibility, longer operational life, performance and dimensional accuracy. They are also known as non-return valve.

  • Size: - ¼” to 2”
  • Pressure: - 500 BAR
  • Thread: - BSP, NPT, DIN SERIES 2353
  • Moc: CS, SS 304L, SS 316L

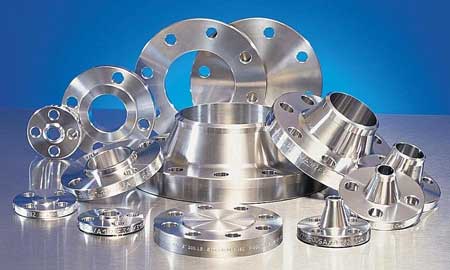

STAINLESS STEEL FLANGES

We are manufacture of stainless steel flanges in compliance with international quality standard using best quality of raw materials and advance technology. A Flange is an external or internal rib or rim for strength, for a guide or for an attachment to another object. A Flange can also be a plate or ring to form a rim at the end of a pipe when fastened with the pipe. Flanges carry the forces of internal resisting moments & may consist of angles, plate or both.
We are supply various type of flanges.

Weld Neck Flanges,
Threaded Flanges,
Slip On (SORF) Flanges,
Lap Joints Flanges,
Socket Weld Flanges,
Blind Flanges Flanges,

  • Moc: - Brass, C.S., M.S., and S.S. & F Series.
  • Standards: - British Standards & DIN Standards.
  • Flange Type: - Casting & ANSI Forged Flanges or Plate Flange.
  • Size: - 1/2” To 24”.
  • Thickness:-11.2mm to 47.8mm. (As per class )
