PIPE CLAMPS

We are manufacturer of wide range of pipe clamps used for supporting piping systems. They possess the features of high dimensional accuracy, corrosion resistance,high efficiency and
durability. A basic clamp assembly consist of weld plate, two identical clamps halves, a cover plate, and two hex head bolts. Clamp are made of Polypropylene (PP) in green or black and Santoprene(SP), PolyAmide-6.Weld and cover plates are made from low carbon steel material OR (SS304, SS316, are available as per client requirement).

PRODUCT PIPE CLAMPS
STANDARD ACCORDING TO DIN 3015
DIN 3015-PART1
DIN 3015-PART2
DIN 3015-PART3
STANDARD SERIES FOR PIPE OD 6 MM TO 102 MM
HEAVY SERIES FOR PIPE OD 6 MM TO 450 MM
TWIN SERIES FOR PIPE OD 6 MM TO 42 MM
ACCESSORIES CLAMPS WITH MOUNTAIN RAILS
CLAMPS WITH STACKING LAYERS
CONSTRUCTION OF CLAMPS BODY BOTH CLAMPS HALVES ARE IDENTICAL

Various Types of clamps

  1. Standard (Light) Series Clamps.
  2. Heavy Series Clamps.
  3. Twin Series Clamps.
  4. Aluminum Heavy Series Clamps.
  5. Double Standard Series Clamps.
  6. Double Heavy Series Clamps.
  7. Double Twin Series Clamps.
  8. Railnut Type Standard series Clamps.
  9. Railnut Type Heavy series Clamps.
  10. Railnut Type Twin series Clamps.
  11. Rubber Insert Type Clamps.

VIEW DATA-SHEET

 1) Standard (Light) Series Clamps.

Standard pipe clamps are used in installation having average loading with relative light vibration in the systems. They are mainly used machine tool industry in case of more vibration top plate can be used. They can be mounted on “T” channel or bottom plate fixed or welded on the structure.

  1. Standard (Light) Series Clamps.
  2. Heavy Series Clamps.
  3. Twin Series Clamps.
  4. Aluminum Heavy Series Clamps.
  5. Double Standard Series Clamps.
  6. Double Heavy Series Clamps.
  7. Double Twin Series Clamps.
  8. Railnut Type Standard series Clamps.
  9. Railnut Type Heavy series Clamps.
  10. Railnut Type Twin series Clamps.
  11. Rubber Insert Type Clamps.

VIEW DATA-SHEET

 2) Heavy Series Clamps.

This type of clamp is designed specifically for heavy duty applications. This type of clamps prevents distortion of the pipe, superior stability and control grip, pipe or tube during installation. Clamps are available in welded plate or channel mounted.

  1. According to DIN 3015 PART 2
  2. Size: 6 MM OD to 450 MM OD.
  3. Jaws Available in Polypropylene (PP), Polyamide-6 (PA-6), with Green or Black Colour.
  4. W.P.:-0 to 6000 PSI (420 Bar) In Piping Systems.
  5. Top & Bottom Plate, Bolt : - C.S., SS 304, SS304L, SS 316, SS 316L.
  6. Temperature: 40° C to 120° C

VIEW DATA-SHEET

 3) Twin Series Clamps.

Twin series pipe clamp is an excellent choice where multiple lines are required, while keeping a close center distance between the lines. These series clamps to resist high pressure in piping systems with the help of thick plate & heavy bolt.

  1. According to DIN 3015 PART 1
  2. Size: 6 MM OD to 42 MM OD.
  3. Jaws Available in Polypropylene (PP), Polyamide-6 (PA-6), with Green or Black Colour.
  4. W.P.:-0 to 6000 PSI (420 Bar) In Piping Systems.
  5. Top & Bottom Plate, Bolt : - C.S., SS 304, SS304L, SS 316, SS 316L.
  6. Temperature: 40° C to 120° C

VIEW DATA-SHEET

4) Aluminum Heavy Series Clamps.

Aluminum heavy series pipe clamps is generally used for high degree temperature applications. Quality tested on well-defined parameters, these meets demands of various industries.

  1. According to DIN 3015 PART 2
  2. Size: 6 MM OD to 450 MM OD.
  3. Jaws Available in Aluminum Jaw Casting or Solid Bar Stock.
  4. W.P.:-0 to 10000 PSI (700 Bar) In Piping Systems.
  5. Top & Bottom Plate, Bolt : - C.S., SS 304, SS304L, SS 316, SS 316L.
  6. Temperature: 40° C to 300° C

VIEW DATA-SHEET

 5) Double Standard Series Clamps.

Double standard series pipe clamp is known as vertical mounting pipe clamp. These clamps permit easy mounting of pipe or tube of the same group. The clamps are connected by intermediate plates and bolts.

  1. According to DIN 3015 PART 2
  2. Size: 6 MM OD to 450 MM OD.
  3. Jaws Available in Aluminum Jaw Casting or Solid Bar Stock.
  4. W.P.:-0 to 10000 PSI (700 Bar) In Piping Systems.
  5. Top & Bottom Plate, Bolt : - C.S., SS 304, SS304L, SS 316, SS 316L.
  6. Temperature: 40° C to 90° C

VIEW DATA-SHEET

6) Double Heavy Series Clamps.

Double heavy series pipe clamp is known as vertical mounting pipe clamp. These clamps permit easy mounting of pipe or tube of the same group. The clamps are connected by intermediate plates and bolts. This type of pipe clamp mostly used for absorbs vibration, impact and resist stress in piping systems.

  1. According to DIN 3015 PART 2
  2. Size: 6 MM OD to 450 MM OD.
  3. Jaws Available in Aluminum Jaw Casting or Solid Bar Stock.
  4. W.P.:-0 to 6000 PSI (700 Bar) In Piping Systems.
  5. Top & Bottom Plate, Bolt : - C.S., SS 304, SS304L, SS 316, SS 316L.
  6. Temperature: 40° C to 120° C

VIEW DATA-SHEET

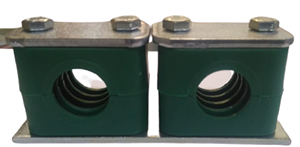

7) Double Twin Series Clamps.

Double standard series pipe clamp is known as vertical mounting pipe clamp. These clamps permit easy mounting of pipe or tube of the same group. The clamps are connected by intermediate plates and bolts. This type of pipe clamp used for heavy duty application in gas systems, construction, and food processing plants.

  1. According to DIN 3015 PART 2
  2. Size: 6 MM OD to 450 MM OD.
  3. Jaws Available in Aluminum Jaw Casting or Solid Bar Stock.
  4. W.P.:-0 to 6000 PSI (700 Bar) In Piping Systems.
  5. Top & Bottom Plate, Bolt : - C.S., SS 304, SS304L, SS 316, SS 316L.
  6. Temperature: 40° C to 120° C

VIEW DATA-SHEET

8) Railnut Type Standard series Clamps.

This type of pipe clamp is generally used for mounting in a channel systems .In this pipe clamp used for nut instead of bottom plate.

  1. According to DIN 3015 PART 2
  2. Size: 6 MM OD to 102 MM OD.
  3. Jaws Available in Polypropylene (PP), Polyamide-6 (PA-6), with Green or Black Colour.
  4. W.P.:-0 to 1500 PSI (100 Bar) In Piping Systems.
  5. Top & Bottom Plate, Bolt : - C.S., SS 304, SS304L, SS 316, SS 316L
  6. Temperature: 30° C to 90° C

VIEW DATA-SHEET

9) Railnut Type Heavy series Clamps.

Double heavy series pipe clamp is known as vertical mounting pipe clamp. In this pipe clamp used for railnut instead of bottom plate.

  1. According to DIN 3015 PART 2
  2. Size: 6 MM OD to 102 MM OD.
  3. Jaws Available in Polypropylene (PP), Polyamide-6 (PA-6), with Green or Black Colour.
  4. W.P.:-0 to 6000 PSI (100 Bar) In Piping Systems.
  5. Top & Bottom Plate, Bolt : - C.S., SS 304, SS304L, SS 316, SS 316L
  6. Temperature: 30° C to 120° C

VIEW DATA-SHEET

10) Railnut Type Twin series Clamps.

This type of pipe clamp used for heavy duty application in gas systems, construction, and food processing plants.

  1. According to DIN 3015 PART 1
  2. Size: 6 MM OD to 102 MM OD.
  3. Jaws Available in Polypropylene (PP), Polyamide-6 (PA-6), with Green or Black Colour.
  4. W.P.:-0 to 6000 PSI (100 Bar) In Piping Systems.
  5. Top & Bottom Plate, Bolt : - C.S., SS 304, SS304L, SS 316, SS 316L
  6. Temperature: 30° C to 120° C

VIEW DATA-SHEET

11) Rubber Insert Type Clamps.

Rubber inserted pipe clamps prevent vibration damage and avoid contact corrosion. This type of pipe clamps prevents loosening of assemblies of tube & pipe.

  1. According to DIN 3015 PART 1
  2. Size: 6 MM OD to 450 MM OD.
  3. Jaws Available in Polypropylene (PP), Polyamide-6 (PA-6), with Green or Black Colour.
  4. W.P.:- -0 to 6000 PSI (420 Bar) In Piping Systems
  5. Top & Bottom Plate, Bolt : - C.S., SS 304, SS304L, SS 316, SS 316L
  6. Temperature: 30° C to 120° C
  7.  Rubber Bushing Type.

VIEW DATA-SHEET

U BOLT CLAMPS

Our U bolts are available in steel alloys, carbon steel and stainless steel alloys. Zinc and hot dipped galvanized coatings are offered for custom coating and finishing. Our cutting and chamfering services will customize your U bolts to meet the tightest tolerances so that your finished product meets your exact requirements.

Round Steel U bolt clamps design according to DIN 3570.

1 Set=U bolts with 2 nuts and 2 washers. (Plastic pipe Saddle on demand.)

Size: 3/8” (10 NB) To 24” (600 NB)

VIEW DATA-SHEET
