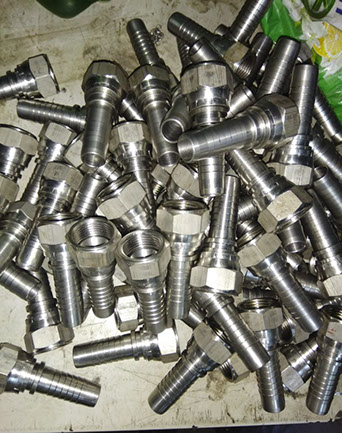

JIC 37°FLARE FITTINGS
We are Manufacture of JIC 37° Flare fittings as per SAE J514 and ISO 8434-2 industry standard. JIC fittings are a type of compression fitting which is having 37 Flare seating surface. The seats provided in the JIC Fittings are larger then the seats in pipe swivel fittings. It is similar in size and threading to 45° Flare SAE Fittings. JIC Fittings systems mainly consist of three components that make a tubing assembly (Body, Nut & Sleeve). The JIC 37° Flare Fitting incorporates the smallest seal area of all fitting types. Seal area only slightly larger than the fluid flow area. The small seal area results in a compact design, low assembly torque, and a relatively high-pressure capability. It is widely used as a hose end in hydraulic application.
TYPES OF FLARE FITTINGS
1) Straight Union 2) Union Tee 3) Union 90° Elbow 4) Union Cross 5) NPT Male Branch Tee 6) NPT Male Branch Run Tee
7) 90° NPT Male Elbow 8) 45° NPT Male Elbow
9) SAE Male Hex Connector 10) Male BSP Union 11) Male Metric Union 12) Male NPT Union 13) Female BSP Hexagon Connector 14) Swivel Female x BSP Male Connector 15) Swivel Female x SAE Male Connector Bulkhead 16) 90° Bulkhead Elbow and Wieldable Bulkhead 17) 90° Swivel Nut Elbow 18) 45° Swivel Nut Elbow 19) Swivel Branch Tee 20) Swivel Run Tee 21) Bsp Positional 90° Elbow 22) SAE 23) Metric Positional 90° Elbow 24) Bsp Positional Run Tee 25) Bsp Positional Branch Tee
26) Bsp Positional Run Tee
27) Reducer
