We are leading manufacturer and supplier of thread and ferrule fittings as per DIN/IS/ASTM/SAE for ease of interchange ability and to maintain high quality standards. Each fitting are precisely machined and checked thoroughly to achieve consistence high quality. Wide selection of material and configuration suits every applications and ensure leak proof piping and easy pipe layout. The range offered by us includes single ferrule hydraulic fittings and double ferrule Swagelok type fittings.
Various Types of Fittings
- Single Ferrule Bite Type Fittings (ERMETO & PARKER TYPE).
- Twin Ferrule Bite Type Fittings (SWAGELOK TYPE).
- Hose Adaptor Thread Fittings.( 60 Degree Cone)
- Socket Weld Fittings As Per ASME/SAE Standards (3000 lbs/6000 lbs).
- Pipe Fittings As Per SAE Standards Thread (UN/UNF Class 2A/2B).

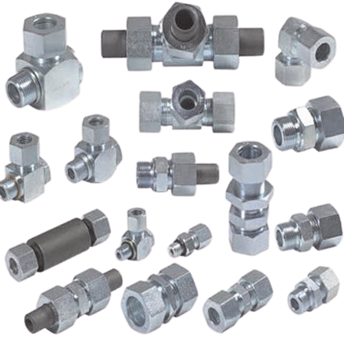

1) Single Ferrule Bite Type Fittings (ERMETO 24° ).
These Single Ferrule Bite Type Fittings are the most used bite type fittings in the world. These Single Ferrule Bite Type Fittings are flare less bite type metric fittings that consist of a body, progressive ring (ferrule) and nut. On assembly, two cutting edges of the ferrule “bite” into the outer surface of the tube ensuring the necessary holding power for high operating pressures. These Single Ferrule Bite Type Fittings are design in accordance with DIN 2353.
These fittings are offered in variegated finishes such as Trivalent Blue, Passivated Zinc Plating in regular and Blackening/Phosphated, Zinc Yellow passivated. Threaded ends are protected from dust and getting damage, by covering them with plastic end covers for a long and safe storage.
Size:-Light Duty (6L to 42L mm OD) & Heavy Duty (6 S to 38 S mm OD).
Pressure: - 3000PSI/6000PSI.
Moc: - Cold Formed Nuts –SAE 1015 as per DIN 1.1141 & SAE 1018 Ferrule Rings, En1A (SAE1213/ DIN 1.0715) Free Cutting Steel according to DIN En 10277,Hot Forged Elbow & Tee -15 C8 SAE1018, Bar Stock(Hex), Flats-En1A(SAE1213/DIN 1.0715)
Tube to Tube fittings.
Tube to Female Port.
- Male Stud Connector – BSP, Taper , Metric and NPT
- Male Stud Elbow – BSP, BSP Taper, Metric
- Male branch Tee
- Male Run Tee
Tube to Female Port
- Female Connector – BSP, Metric.
Tube to Tube port. (Adjustable Fittings)
- Swivel Adjustable Elbow
- Swivel Adjustable Branch Tee
- Swivel Adjustable Run Tee
- Stand Pipe Adapter
- Swivel union.
Banjo Fittings
- Banjo Elbow
- High Pressure Banjo Elbow
Other Fittings
- Male Female Adapter
- Hex Nipple
- Dead Plug (closure plug)
- Union Elbow
- Reducing Union
- Union Tee
- Union Cross
- Reducing Tee
- Bulkhead Union
- Bulkhead Union Elbow
VIEW DATA-SHEET

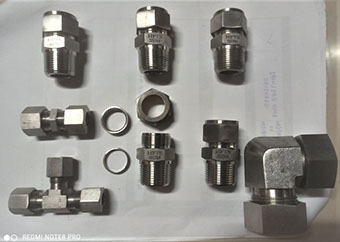

2) Twin Ferrule Bite Type Fittings (COMPRESSION TYPE).
Twin ferrule compression tube fittings provide leak proof torque free seals at all tubing connections.They eliminate hazardous leaks instrumentation, process, Pneumatic, hydraulics, gas and other applicable tubing system which could otherwise turn out to be costly to the installation. The basic twin ferrule tube fitting is a four piece fitting consisting of the nut, the back ferrule, the front ferrule and the body. When installed it becomes a five piece connection with the addition of the providing a solid leak free joint. The advantage of the twin ferrule compression tube fittings provides leak proof application under high pressure & vibration.
Tube to Tube fittings
- Straight Union
- Union Elbow
- Reducing Union
- Union Tee
- Union Cross
- Reducing Tee
- Bulkhead Union
- Bulkhead Union Elbow
Tube to Female Port
- Male Stud Connector – BSP, Taper , Metric and NPT
- Male Stud Elbow – BSP, BSP Taper, Metric.
- Male branch Tee
- Male Run Tee.
Tube to Male Thread
- Female Connector – BSP, Metric
Tube to Tube port. (Adjustable Fittings)
- Swivel Adjustable Elbow
- Swivel Adjustable Branch Tee
- Swivel Adjustable Run Tee
- Stand Pipe Adapter
- Swivel union
Banjo Fittings
- Banjo Elbow
- High Pressure Banjo Elbow.
Other Fittings
- Male Female Adapter
- Hex Nipple
- Dead Plug (closure plug)
- Union Elbow
- Reducing Union
- Union Tee
- Union Cross
- Reducing Tee
- Bulkhead Union
- Bulkhead Union Elbow
3) Hose Adaptor Thread Fittings
Adapter fittings are typically used for hose adapter on equipment design for the application of hydraulic construction machineries, power pack, SPM, where hose are connected with the machine parts with the help of hose adapters. The metal to metal sealing is achieved by a single line of contact between the conical surface of the 60 Degree cone seat and the corresponding surface of the ballinose or cone swivel. The hose adapter threads are design BSPP, BSPT, & NPTF Thread as per standard.
Adapter fittings are typically used for hose adapter on equipment design for the application of hydraulic construction machineries, power pack, SPM, where hose are connected with the machine parts with the help of hose adapters. The metal to metal sealing is achieved by a single line of contact between the conical surface of the 60 Degree cone seat and the corresponding surface of the ballinose or cone swivel. The hose adapter threads are design BSPP, BSPT, & NPTF Thread as per standard.
- Size: - 1/8” to 2”
- Pressure :- 3000PSI /6000PSI
- Moc : - CS (St 37.4) , SS304, SS 304L, SS 316, SS 316L

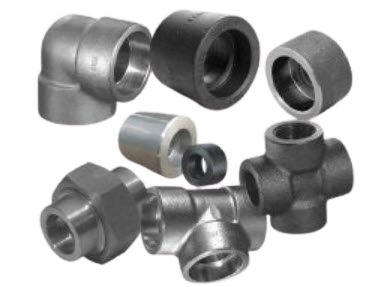

4) Socket Weld Fittings As Per ASME/SAE Standards (3000 lbs./6000 lbs.)
We manufacturer wide socket weld fittings and screw type fittings that ensure smooth flow of liquid. The socket weld design is commonly used in the demanding environments of chemical and power plants. Highly reliable, these stainless steel socket weld fittings and screw provide a sturdy, tight integral line system. Socket weld Fittings are design as per SAE Standards. The material of the grade ASTM A105 & ASTM A182.
Type of socket weld fitting
- a) Union b) Coupling c) Half Coupling d) Cross e) Elbow 90 f) Elbow 45 g) Tee.
- Size: - 1/8” to 2”
- Pressure :- 3000PSI /6000PSI
- Moc : - CS (St 37.4) ,A105, SS304, SS 304L, SS 316, SS 316L
.png)
5) Pipe Fittings As Per SAE Standards Thread (UN/UNF Class 2A/2B).
We offer wide range of precision pipe fittings and adaptor to suit every application. The pipe fitting which is also known as Threaded /Socket weld fittings having external/internal thread to provide a leak seal proof joints and in a socket weld the pipe is welded to the fittings. The class of pipe fitting range is SAE 2000 to SAE 9000.
Size: - 1/4” to 2”
Pressure :- 3000PSI /6000PSI
Moc : - CS (St 37.4) ,A105, SS304, SS 304L, SS 316, SS 316L
