VALVES

High Pressure Hydraulic Valves which is utilize to control Fluid Power & Motion in Piping Systems.
Hydraulic Valves can be used for High Working Pressure up to 10,000 psi (700 BAR).
 Hydraulic Valves are designed as per DIN /IS / SAE Standards as per its respective application in the Piping Systems.

 Various Types of Valves

1) High Pressure Ball Valves –KHB2.
2) High Pressure Ball Valves –KHB2 24° OD.
3) High Pressure Ball Valves –KHB3.
4) High Pressure Ball Valves –KHB4.
5) High Pressure Ball Valves –KHB2SF.
6) Manifold Block Mounted High Pressure Ball Valve –KHP2.
7) Manifold Block Mounted High Pressure Ball Valve –KHP3.
8) Shut Off Valve –Sub Plate Mounting –MSSL.
9) Needle Valve – NV.
10) Line Check Valves (NRV).
11) Flow Control Valves (DV & DRV).
12) Manifold Mounted Flow Control Valve with Check Valve –DRVP.
13) Pressure Relief Valves (PRV).
14) Manifold Valves (2 Way, 3 Way & 5 Way).

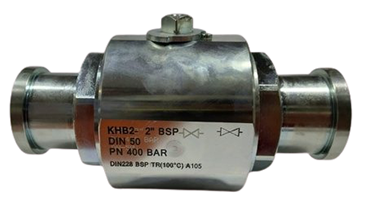

1) High Pressure Ball Valves – KHB2

We are manufacture of compactly constructed high pressure two way ball valve.

  • Size: -¼” to 2” (Full & Reduced Bore)
  • Pressure: - 250 BAR, 500 BAR
  • Thread: - BSP, NPT, SAE J1926-1
  • Moc: CS (St.37.4), SS 304L, SS 316L.

2) High Pressure Ball Valves – KHB2 OD

We are manufacture of compactly constructed high pressure two way 24° Metric ball valve.

  • Size: - 6L to 42L, and 8S to 38S (Full Bore)
  • Pressure: - 500 BAR
  • Thread: - Light & Heavy Series DIN 2353
  • Moc: CS, SS 304L, SS 316L

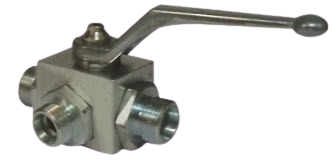

3) High Pressure Ball Valves – KHB3

We are manufacture of compactly constructed high pressure three way ball valve (L Port & T Port).

  • Size: - ¼” to 2” (Full & Reduced Bore)
  • Pressure: - 250 BAR, 500 BAR
  • Thread: - BSP, NPT, SAE J1926-1
  • Moc: CS, SS 304L, SS 316L

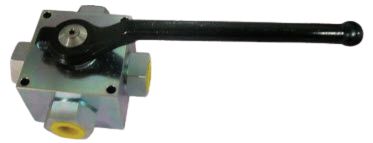

4) High Pressure Ball Valves – KHB4

We are manufacture of compactly constructed high pressure three way ball valve (L Port & T Port).

  • Size: - ¼” to 1” (Full & Reduced Bore)
  • Pressure: - 250 BAR, 500 BAR
  • Thread: - BSP, NPT, SAE J1926-1
  • Moc: CS, SS 304L, SS 316L

5) High Pressure Ball Valves – KHB2SF

We are manufacture of compactly constructed high pressure SAE flange ball valve.

  • Size: - ½” to 2” (Full Bore)
  • Pressure: - 500 BAR
  • Thread: - SAE CODE 61, SAE CODE 62
  • Moc: CS, SS 304L, SS 316L

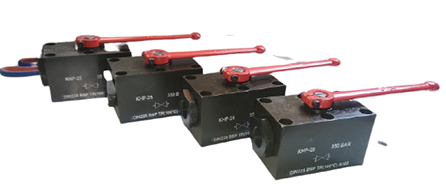

6) Manifold Block Mounted High Pressure Ball Valves – KHP2

We are manufacture of compactly constructed manifold block mounted high pressure ball valve. (2 Way line).

  • Size: - DIN 6 to DIN 50 (Full Bore)
  • Pressure: - 500 BAR
  • Moc: CS, SS 304L, SS 316L

7) Manifold Block Mounted High Pressure Ball Valves – KHP3

We are manufacture of compactly constructed manifold block mounted high pressure ball valve. (3 Way line).

  • Size: - DIN 6 to DIN 50 (Full Bore)
  • Pressure: - 500 BAR
  • Moc: CS, SS 304L, SS 316L

8) Shut off Valve- Sub-Plate Mounting- MSSL

We are manufacture of compactly constructed manifold block
mounted high pressure ball valve. (3 Way line).

  • Size: - DIN 6 to DIN 50 (Full Bore)
  • Pressure: - 500 BAR
  • Moc: CS, SS 304L, SS 316L

9) Needle Valves

We are promising manufacture of high performance oriented valves which are strong and defect free in structure. Needle valve is usually used in flow metering application, especially when a constant, calibrated, low flow rate must be maintain some time such as idle fuel flow in carburetor.

  • Size: - ¼” to 2”
  • Pressure: - 500 BAR
  • Thread: - BSP, NPT, DIN SERIES 2353
  • Moc: CS, SS 304L, SS 316L

10) Check Valves (NRV)

Check valves are self-activating safety valves that permit gases and liquids to flow in one direction only. These valves are widely acclaimed owing to their durability, flexibility, longer operational life, performance and dimensional accuracy. They are also known as non-return valve.

  • Size: - ¼” to 2”
  • Pressure: - 500 BAR
  • Thread: - BSP, NPT, DIN SERIES 2353
  • Moc: CS, SS 304L, SS 316L

11) Flow Control Valves -DRV

Flow control valves provide precise control of flow and shut off in one direction, & automatically allow full flow in reverse direction. A second stage needle allow fine adjustment at low pressure by using the first three turn of the adjusting the knob, the next three turns open the valve to full flow.

  • Size: - ¼” to 1 ½”
  • Pressure: - 500 BAR
  • Moc: CS, SS 304L, SS 316L

12) Manifold Mounted Flow Control with Check Valves –DRVP

Manifold mounted flow control valves mostly used for line pressure A to B.

  • Size: - ¼” to 1 ½”
  • Pressure: - 500 BAR
  • Moc: CS, SS 304L, SS 316L

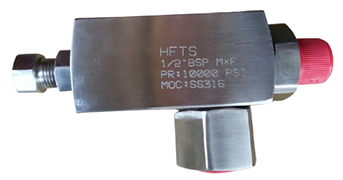

13) Pressure Relief Valves (PSV)

Pressure relief valves control the system pressure by relieving part, or all of the flow of tank. Pressure relief valves are used in hydraulic systems to limit the system pressure to a specific set level. If this set leveled reached, the pressure relief valve responds and feed the excess flow from the system back to the tank. The pressure relief valve is normally closed pressure control valve. The pressure relief valve is known as the pressure safety valve.

  • Size: - ¼” to 1 ½”
  • Pressure: - 3000PSI, 6000PSI, 10000PSI.
  • Moc: CS, SS 304L, SS 316L

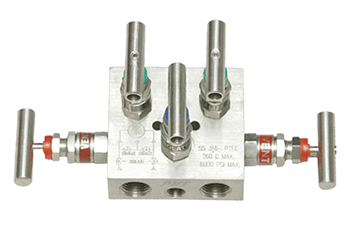

14) Manifold Valves

Manifold valves are leak tight seal with low operating torque. It is design for direct mounting on connection system, impulse lines & transmitters. This combines the function of a tee, calibration valve, isolation valve and all tubing and fittings into a single compact unit thus reducing number of fittings & space required for installation. (2 Way, 3 Way, 5 Way).

  • Size: - ¼” to 1 ½”
  • Pressure: - 3000PSI, 6000PSI, 10000PSI.
  • Thread: - BSP, NPT.
  • Moc: CS, SS 304L, SS 316L
