Our range of Hydraulic Hoses are technologically advanced equipment which is widely used for industrial or general purposes Fabricated with superior quality material at manufacturers end are known for their durability. Our Hydraulic Hoses are known for resistance to chemical, corrosion and heat. We specialized in Hydraulic High Pressure Hose Assembly catering to a very wide range of hose assembly for all types of Hydraulic Equipment, Earth moving Machinery, Equipment for Off shore and On shore Drilling Rigs and Platforms, Mining Equipment, Shipping Industries, Steel Plants, Chemical Plants, Fertilizer, Air-conditioning and Refrigeration plant etc.

Various Types of Hoses

1. Hydraulic High Pressure Rubber Hoses
2. Test Hoses
3. Industrial Hoses
4. Medium Pressure Hose Type “B” Flex
5. Stainless Steel Corrugated Hoses
6. Stainless Steel Braided Hoses
7. Thermoplastics Hoses
8. Acid-Chemical/Food Grade Hoses
9. Wire Braided Hoses
10. Composite Hoses

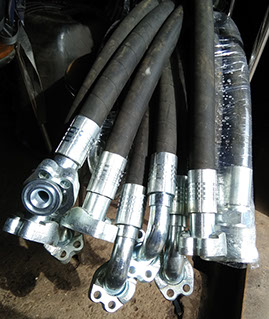

1) Hydraulic High Pressure Rubber Hoses

Hydraulic hose is flexible, resistance to heat and vibration, light weight and cost effective. Hydraulics hose comes in deferent sizes. Measure the inside and outside tube diameter in order to determine which one will fit on the machine & equipment. A variety of hose made from different materials that you can now choose from are compatible with different needs of industrial machines.

2) Test Hoses

Diagnostic test hose coupling are mostly used for measuring systems for pressure monitoring of fluid and gaseous pressure systems. This assembles are ideal for wide range of application that require compact connection and limited pressure flow rate.

Size: -1/8” to 4”

EN 853 1SN / SAE 100 R1AT,
EN 853 2SN / SAE 100 R2AT,
EN 854/ SAE 100 R3,
35 NG CNG HOSE,
EN 854 SAE 100 R5,
EN 854 SAE 100 R6,
EN 856 4SP,
EN 856 4SH,
EN 856 R12,
EN 856 R 13,
SAE 100 R-15,
SUPERJACK 10000 PSI WP,
WATER BLAST,
AIR MASTER HOSE,
LPG HOSE, & Standard end fittings for hoses.
Size: -1/8” to 4”
Pressure: - 3000PSI, 6000PSI TO 25000PSI.
End Fittings:- Female Swivel Elbow, Female swivel JIC Elbow, Flanges-Straight, BEE-NIPPLE, NPT, BSP, JIC.
Moc: CS (St.37.4), SS 304L, SS 316L.

4) Industrial Hoses

Pneumatics Tool Hose,
Air /Water Hose,
Rock Driill Hose,
500 MP/Air Drill Hose,
205 MB Steam King Hose,
Steam Hose (1 wire),
Wash Down Hose,
Super Spray Hose,
Petrol Dispensing Hose,
Blacksnake Gasoline Hose,
CNG Hose,
Chemical Hose,
Sandblast Hose,
Carbon Free Hose.
Size: -1/8” to 10”
Pressure: - 3000PSI, 6000PSI TO 25000PSI.
End Fittings:- Female Swivel Elbow, Female swivel JIC Elbow,
Flanges-Straight, BEE-NIPPLE, NPT, BSP, JIC.
Moc: CS (St.37.4), SS 304L, SS 316L.

6) Minimize Coupling

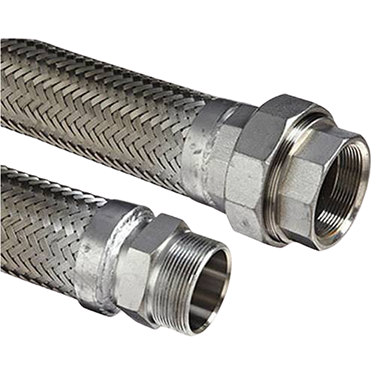

7) Stainless Steel Braided Hoses

Stainless steel braided hose commonly used in high temperature vacuum or general purpose application where permission is undesirable. Standard and custom assembles are available.

• Size: -1/8” to 10”
• Pressure: - 3000PSI.
• End Fittings:- BSP, BSPT, NPT, Screw End,Flange End Swivel Type, Fix Type as ANSI B16.5
• Moc: CS (St.37.4), SS 304L, SS 316L.

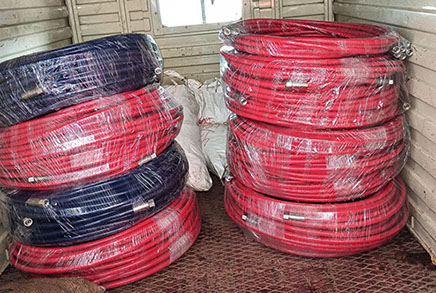

8) Thermoplastics Hoses

Thermoplastics hoses are hydraulics and pneumatic hoses with both thermoplastic outer covers and thermoplastics inner tube. All hose layers are bounded together to provide maximum kink resistance & flexibility through a wide range of application. Tightly packed fiber braided reinforces provided strength.

• Size: -1/4” to 2”
• Pressure: - 3000PSI.
• End Fittings:- BSP, BSPT, NPT, Screw End
• Moc: CS (St.37.4), SS 304L, SS 316L.

9)Wire Braided Hoses Assemblies

These hoses assembles are reinforce with quality wires on all external sides. These assembles are used in automobile sector due to optimal performance

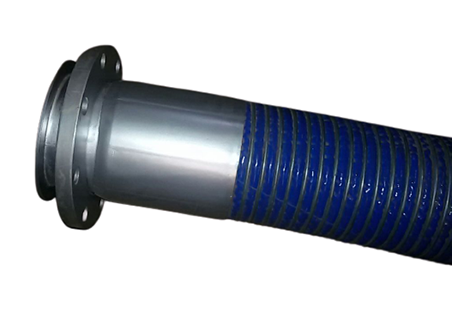

10) Composite Hoses

Composite hose made from polypropylene fabrics and films with an abrasion resistance PVC coated fabric cover. Inner and outer wires are galvanized mild steel and stainless steel 316 L.
